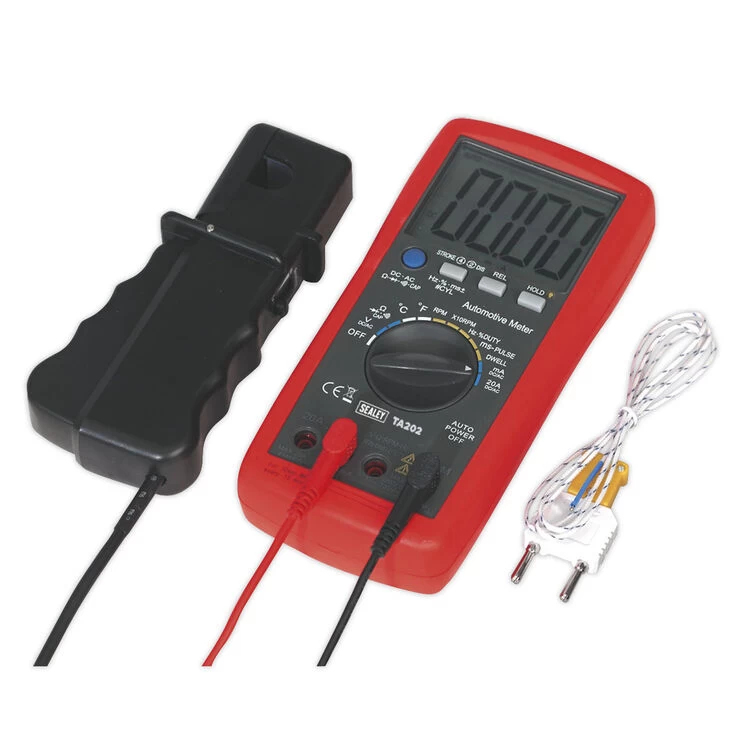

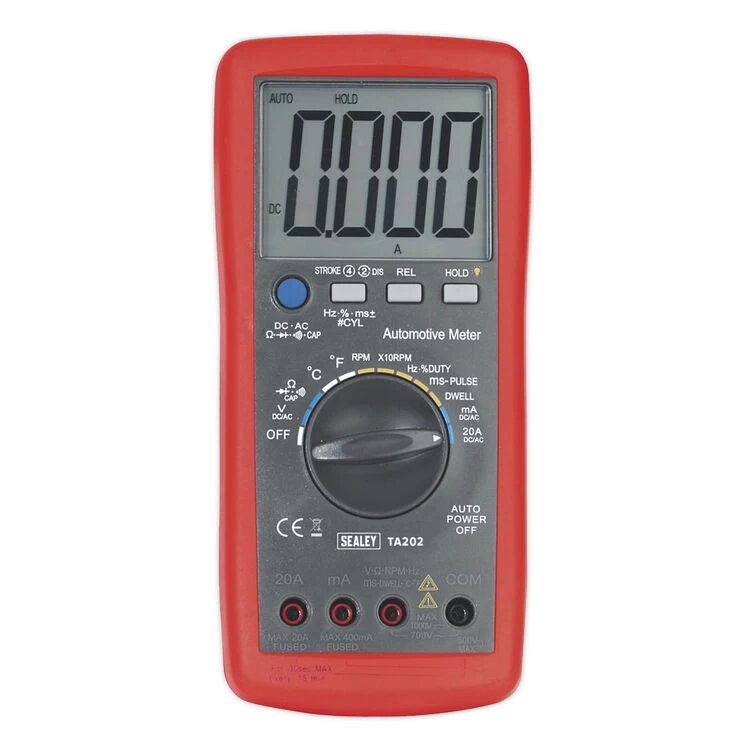

Sealey TA202 Digital Automotive Analyser 14 Function With Inductive Coupler
Original price was: $104.68.$73.28Current price is: $73.28.
- Excellent customer service online in a timely manner
- Quality Meets Affordability
- Safe Shopping Guaranteed
- Shop with Confidence
• Extra-large, high-contrast LCD display with 36mm high digital read-out and back light.
• Durable case and integral stand suitable for the toughest workshop conditions.
• Features millisecond pulse-width function for accurate measurement of fuel injection systems.
• Includes auto-ranging, data-hold and auto-power-off.
• Suitable for AC and DC circuits.

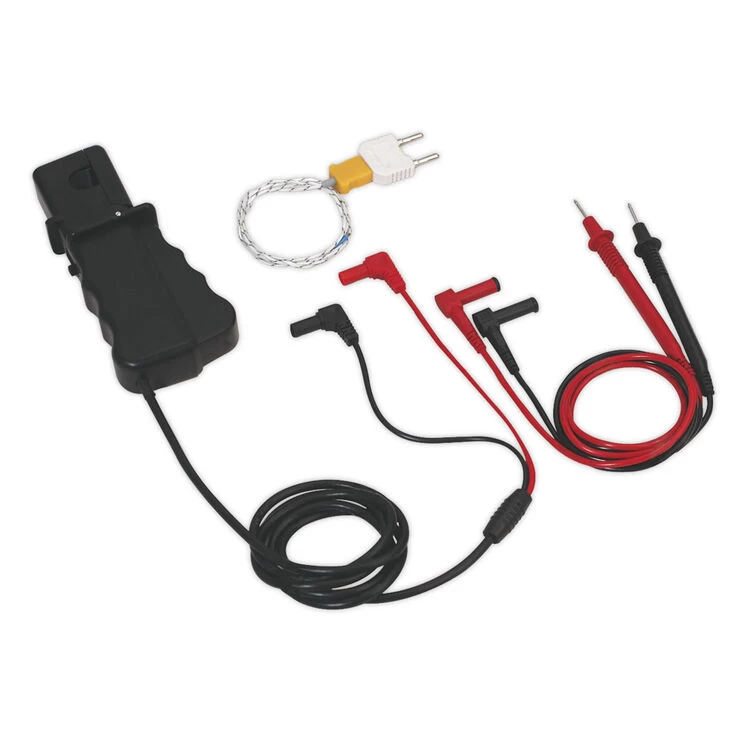

• Supplied with inductive coupler (IC), test probes, thermocouple and storage case.
• Durable case and integral stand suitable for the toughest workshop conditions.
• Features millisecond pulse-width function for accurate measurement of fuel injection systems.
• Includes auto-ranging, data-hold and auto-power-off.
• Suitable for AC and DC circuits.
• Supplied with inductive coupler (IC), test probes, thermocouple and storage case.
Specification
| Name | Value |
|---|---|
| Model No | TA202 |
| Nett Weight | 394g |
| Weight | 394g |
| Frequency | 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz (Auto-Ranging) |
| Duty Cycle | 0.1-99.9% |
| Transistor Test | No |
| Hi-impact Case | Yes |
| Low Battery Indicator | Yes |
| Size (l X W X D) | 195 x 92 x 36mm |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Back Light | Yes |
| Dc Voltage | 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging) |
| Tach (rpm) | 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm |
| Dwell | 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
| Ac Voltage | 400mV, 4V, 40V, 400V, 700V (Auto-Ranging, except 400mV) |
| Ac Current | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA) |
| Dc Current | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA) |
| Capacitance | 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) |
| Pulse Width | 1-10ms |
| Continuity | |
| Temperature | -20 to +760°C/-4 to +1400°F |
| Ir Temperature | No |
| Diode Check | Yes (Typical Test Current 0.3mA) |
| Bar Graph Display | No |
| Display Hold | Yes |
| Auto-ranging | Yes |
| Inductive Coupler | Yes |
| Pc Interface | No |
| Digits Height | 36mm |
| Auto Power Off | Yes |
| Batteries (supplied) | 9V (PP3) |
SKU: TA202
Manufacturer part code: TA202
