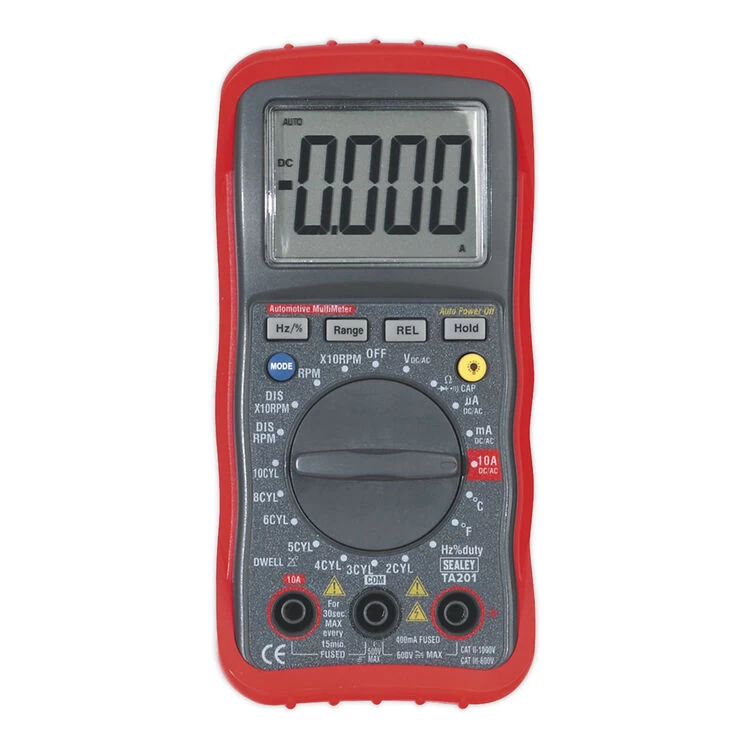

Sealey TA201 Digital Automotive Analyser 13 Function With Inductive Coupler
Original price was: $87.85.$61.50Current price is: $61.50.
- Excellent customer service online in a timely manner
- Quality Meets Affordability
- Safe Shopping Guaranteed
- Shop with Confidence
• Compact size meter with 4-digit 22mm, high-contrast LCD display and back light.
• Features auto-ranging, data-hold and auto-power-off functions.

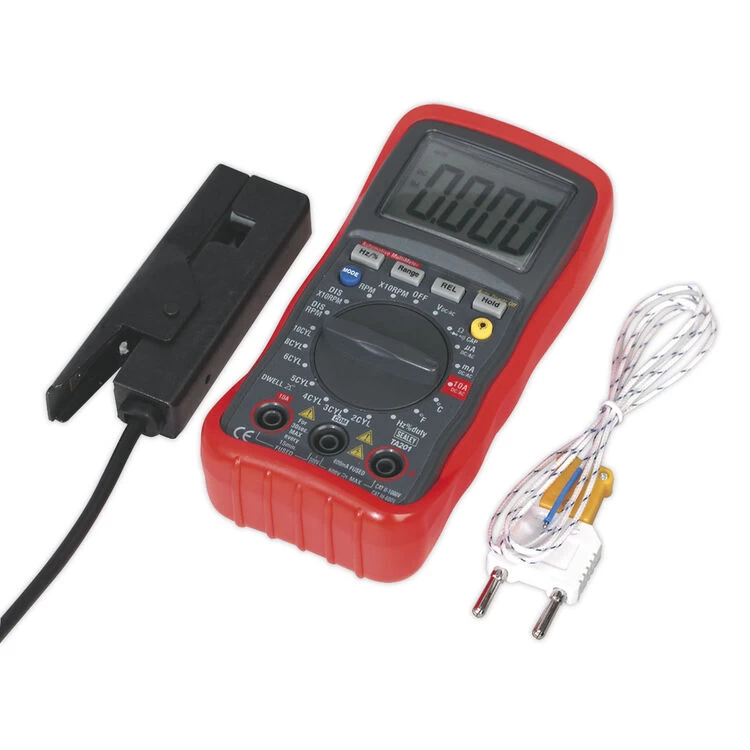

• Includes inductive coupler for fast reading of engine rpm.

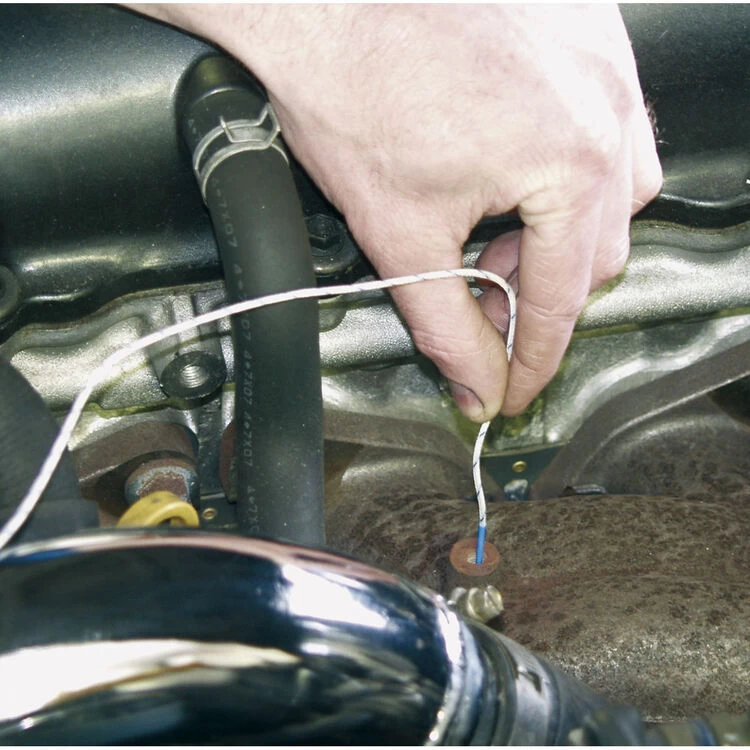

• Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
• Features auto-ranging, data-hold and auto-power-off functions.
• Includes inductive coupler for fast reading of engine rpm.
• Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
Specification
| Name | Value |
|---|---|
| Model No | TA201 |
| Nett Weight | 330g |
| Weight | 330g |
| Frequency | 4V Range 5Hz-10kHz, 40 & 400V Ranges 5Hz-200kHz, 600V Range 50Hz-1kHz, 400mA Range 5Hz-5kHz, 10A Range 5Hz-1kHz |
| Duty Cycle | 0.1-99.9% |
| Transistor Test | No |
| Hi-impact Case | Yes |
| Low Battery Indicator | Yes |
| Size (l X W X D) | 146 x 66.2 x 41.5mm |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Back Light | Yes |
| Dc Voltage | 400mV, 4V, 40V, 400V, 600V (Auto-Ranging) |
| Tach (rpm) | 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm |
| Dwell | 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36° |
| Ac Voltage | 400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV) |
| Ac Current | 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
| Dc Current | 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
| Capacitance | 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) |
| Pulse Width | No |
| Continuity | |
| Temperature | -20 to +760°C/-4 to +1400°F |
| Ir Temperature | No |
| Diode Check | Yes (Typical Test Current 0.3mA) |
| Bar Graph Display | No |
| Display Hold | Yes |
| Auto-ranging | Yes |
| Inductive Coupler | Yes |
| Pc Interface | No |
| Digits Height | 22mm |
| Auto Power Off | Yes |
| Batteries (supplied) | 9V (PP3) |
SKU: TA201
Manufacturer part code: TA201
