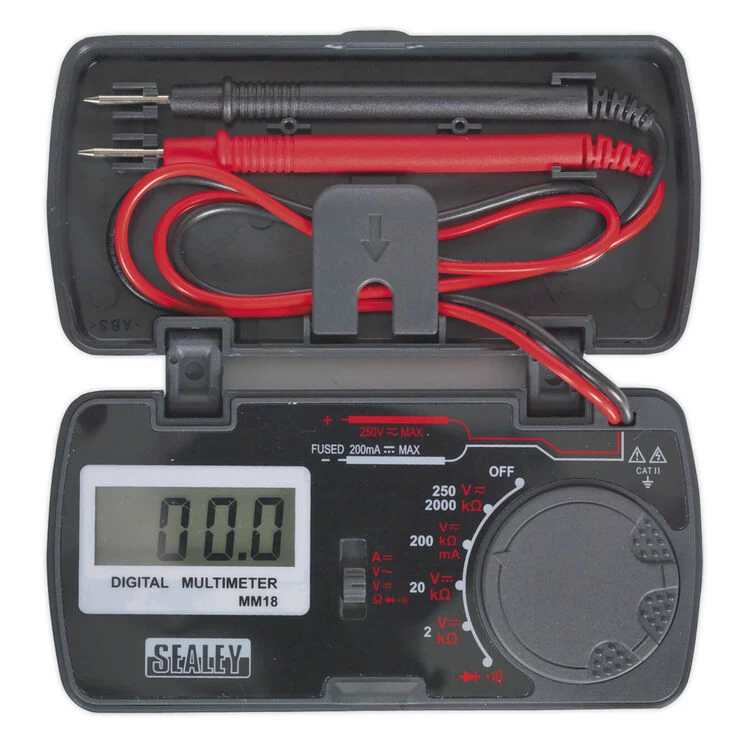

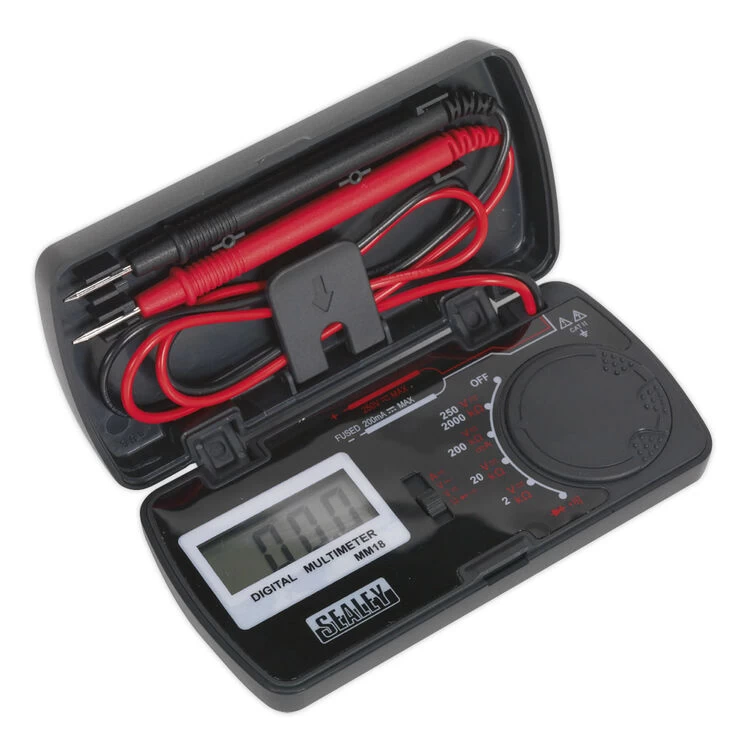

• Handy compact unit, small enough to fit in your pocket, making it ideal for basic circuit testing whilst on the move.

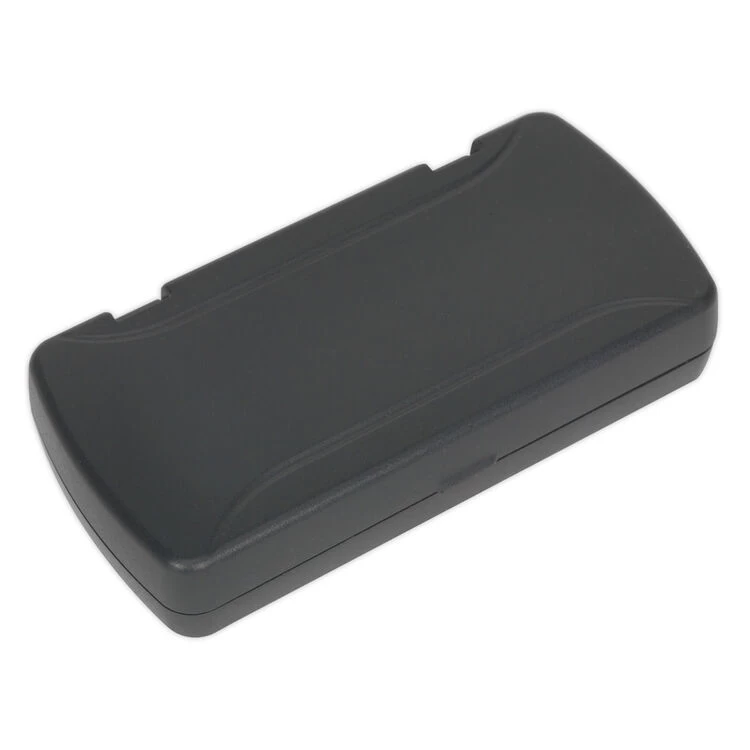

• Features flip lid for added screen protection and storage of leads.
• Conforms to EN 61010-1 CAT II safety requirements.
• Supplied with test leads.
• Measures:
– AC and DC Voltage
– DC Current
– Resistance
– Audible Continuity
• Features flip lid for added screen protection and storage of leads.
• Conforms to EN 61010-1 CAT II safety requirements.
• Supplied with test leads.
• Measures:
– AC and DC Voltage
– DC Current
– Resistance
– Audible Continuity
Specification
| Name | Value |
|---|---|
| Model No | MM18 |
| Nett Weight | 101g |
| Weight | 101g |
| Size (l X W X H) | 114 x 56 x 23mm |
| Continuity Audible | Yes |
| Digits X Height | 5 x 11mm |
| Battery (supplied) | 2 x 1.5V |
| Conformity | EN 61010-1 |
| Voltage Dc | 2V, 250V (±1%) |
| Voltage Ac | 250V (±1.2%) |
| Current Dc | 200mA (±1.2%) |
| Resistance | 2kΩ, 20kΩ, 200kΩ, 2000kΩ (±1.2%) |
SKU: MM18
Manufacturer part code: MM18
